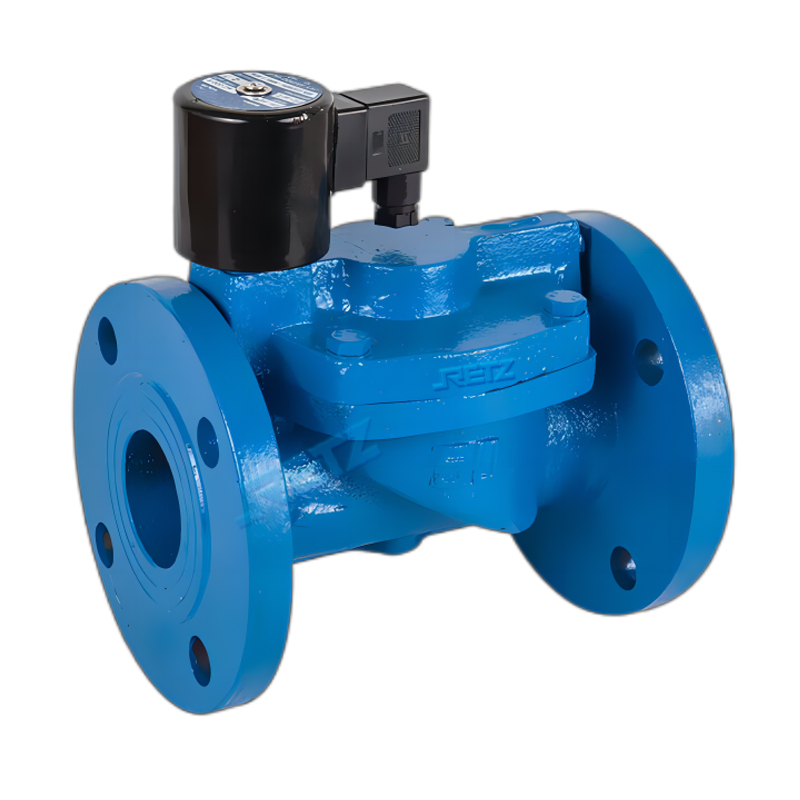

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口水用電磁閥通常采用先導式結構,適用于中性純凈氣體或液體、水、熱水、冷凍水、循環水、除鹽水、海水等管路的自動化控制系統,從而達到系統和設備的程序控制或遠程控制The RETZ water solenoid valve usually adopts a pilot type structure and is suitable for automatic control systems of neutral pure gas or liquid, water, hot water, chilled water, circulating water, desalinated water, seawater, and other pipelines, in order to achieve program control or remote control of the system and equipment.

進口水用電磁閥控制原理--

常閉型：線圈通電時，先導閥芯吸合，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開；當線圈斷電時，先導閥芯靠彈簧復位，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉Normally closed type: When the coil is energized, the pilot valve core is closed, the pilot hole is opened, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve is opened; When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is closed, and the valve upper chamber is pressurized by the piston orifice and the thrust of the reset spring, and the solenoid valve is closed.

常開型：線圈通電時，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉。當線圈斷電時，先導閥芯靠彈簧復位，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開Normally open type: When the coil is energized, the pilot hole is closed, and the upper chamber of the valve is pressurized by the piston orifice and pushed by the return spring. The solenoid valve is closed. When the coil is powered off, the pilot valve core is reset by the spring, the pilot hole is opened, the upper chamber of the valve is depressurized, the piston is pushed by the medium pressure in the lower chamber, and the solenoid valve opens.

進口水用電磁閥結構特點--

動作靈敏度高;

密封材質NBR、EPDM、FPM 多種可選;

先導式、直動式結構;

活塞式、膜片式結構

性能穩定、密封性好、開關迅速；

配套線圈,不易燒毀,使用壽命長;

進口水用電磁閥選型參數--

閥體材質：鑄鋼、黃銅、不銹銹304或316

接口尺寸：G1/4-G2" 或F1/2-F4"

工作壓力：0-10Mpa

介質粘度：≤20mm2/s

介質溫度：-10~+80℃

環境溫度：-10~+50℃

密封材質：EPDM

標準電壓：AC：220V（50/60HZ)/DC:24V

防護性能：防水、防爆（DⅡCT5、ExdⅡCT5、ExmbⅡCT4、ExdⅡCT4）、防腐。
